We are engaged in offering a unique range of Door Frame Metal Detector. Offered door frame metal detector is manufactured by our highly experienced professionals using the high-end technology which is much-admired by our valuable clients for its long functional life and low maintenance features.

Detects ferrous,non-ferrous metals and their alloys.

It detects small arms like pistol, knife, etc concealed on a person.

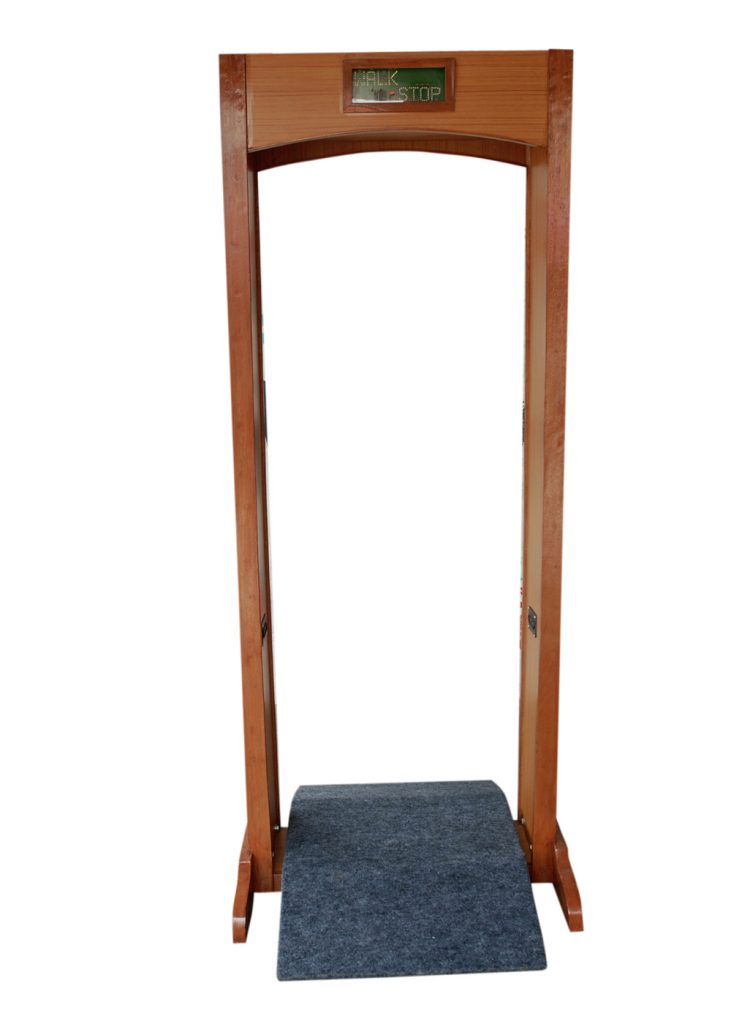

Two DFMDs when ploaced together work sastisfactorily without trouble. Good Quality wooden frame ,sunmica finish with in-built Walk/Stop Indicators.

The Electronics portion placed on top of the wooden frame with plug in card system and IR Sensors to avoid outside disturbances.

Uniform Detection from Top to Bottom.

Four Tone:

• Simple alarm for small metal
• Loud alarm for Medium metal
• Police alarm for heavy metal
• Different tone for ferrite detection

Features:

• Advanced Micro Processor based
• Inbuilt Battery Charger
• Aesthetically built
• Walk/Stop Indicator on the front
• Control panel along with LED Indicators with visual display LEDS for indicating presence of metals, weapons IR Sensors to avoid alarm indication for metal movement outside the DFMD, In / Out Counter

Technical Specifications:

• Technology: Micro Processor
• Visual Display: LED
• Power: 230 VAC & Battery 6V Rechargeable
• Audio: Four Tone
• Counter: 5 Digit In / Out & Net In
• Indicators: Walk, Stop & Low battery
• Sensor: Infra Red
• Size: 200 cm X 80 cm
• Operating Temperature: -20°C to +55°C

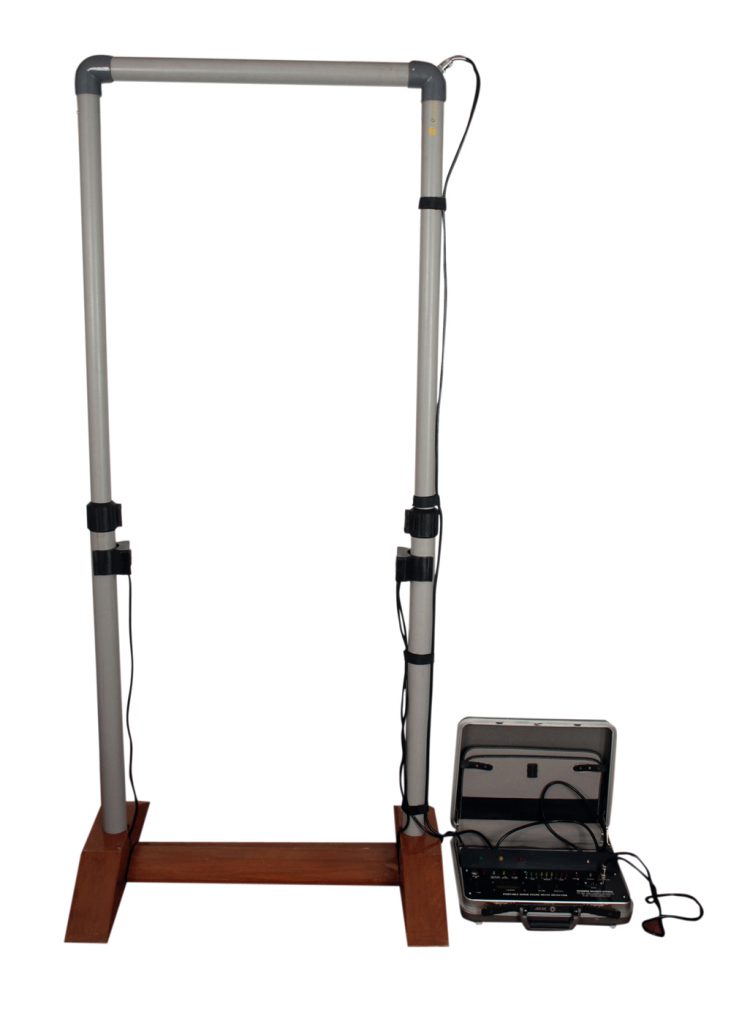

Portable Door Frame Metal Detector detects ferrous, non-ferrous metals and their alloys. It detects small arms like pistol, knife, etc. concealed in ferrite rods in all six possible orientations at all speed. Two PDFMDs when installed together work Satisfactorily without trouble.

• Uniform detection from Top to Bottom
• LCD Display
• Counter: Six digit Counter.

Search Coil made of Flexible cable housed in telescopic extendable PVC Pipe frame with clutch’s for quick release and Locking systems contained in a canvas carry bag. The pipes can be joined to form a Door Frame by releasing the clutch. Entire system can be assembled within 3 minutes to form an archway. Control Unit Housed in a VIP briefcase. Plug in card systems and IR Sensors to avoid outside movement alarms.

Features:

Advanced MICRO PROCESSOR BASED Technology, AUTO TUNED, INBUILT BATTERY CHARGER, IN/OUT COUNTER, Wooden protection for Search Coil, two side Wooden legs to support the structure firmly. IR Sensors to avoid alarm indication for Metal movement outside the DFMD. Micro processor based Induction loop with immunity to electro-magnetically noisy. Environment, Weather proof, rugged and well designed for Trouble free functioning, Easy to install and operate.

TECHNICAL SPECIFICATIONS:

• Technology : Microprocessor
• Sensor : Infra Red
• Size : 200cm * 80 cm
• Tuning : Auto Setting
• Zone : Single Zone
• Operating Temperature :-20°C to +55°C
• Visual Display : LED / LCD
• UPS : 80 Hours
• Weight : Approx 25kg
• Counter : In/Out, Net In
• Power : 230V 50Hz &
• Sensitivity Level : 0-9
• 6 V Rechargeable Battery

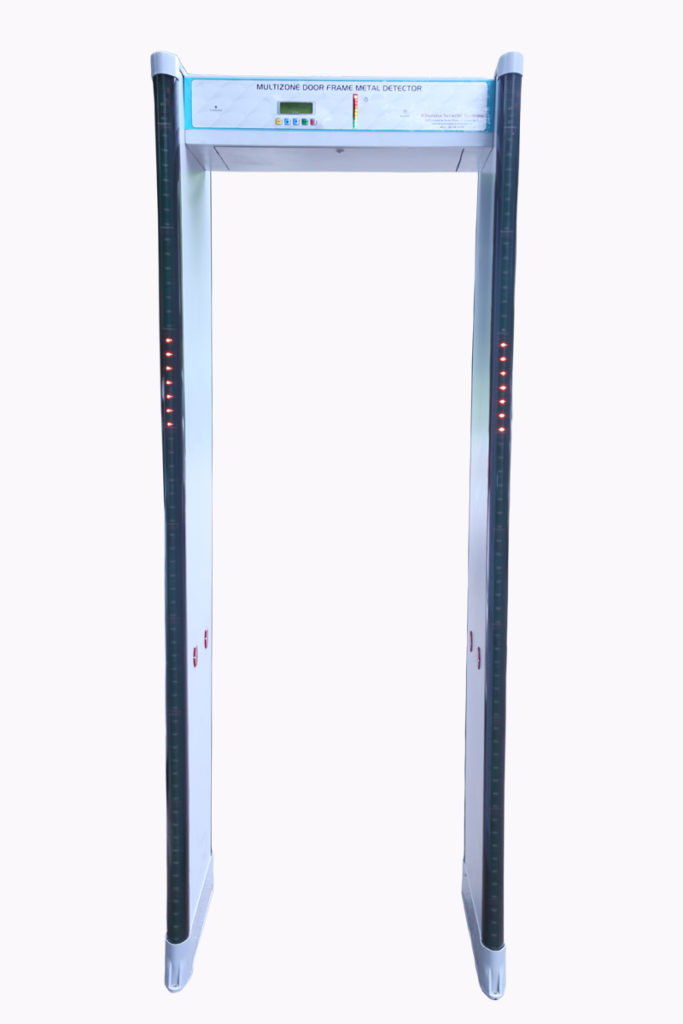

(with 9 different Detecting Zones, (Walk-through type)

Features:

• Intelligent In/Out person Counter Display
• Large Led Display,  Zone wise LED Display also on Panels
• Operation Through Control Panel
• Senstivity Adjustment,Password Protection
•  High senstivity and stability
• Equal sensitivity for ferrous and non-ferrous metals
• Walk and Stop Diplay to regulate traffic, Instant recovery on detection
• LED Bar graph to judge the percentage of Metal
• Sensitivity and threshold adjustment over wide range 0 to 150, Visual indication on both side of the panel
• In-built IR Sensors to avoid external detection
• Intelligent person counter with IN/OUT count
• Power: 220v AC,  Also In-Built Battery Back up for 6 hours
•  Detachable in three parts. Easy to install

TECHNICAL SPECIFICATIONS

• Technology : Micro processor
• Visual Display : LED
• Power : 230 VAC & Battery 6 V Rechargeable
• UPS : 80 Hours
• Audio : Four Tone
• Counter : 5 Digit In/Out & Net In
• Indicators : Walk, Stop & Low battery
• Sensor : Infra Red
• Size : 200cm X 80cm
• Operating Temperature : -20°C to + 55°C

Control panel along with LED Indicators with visual display leds for indicating presence of metals, weapons, IR Sensors to avoid alarm indication for metal movement outside the DFMD, IN/Out Counter. Advanced Micro processor based Induction loop with immunity to electro magnetically. Noisy environment.
